Plastic tube
Combine functionality with versatile design while being environmentally friendly

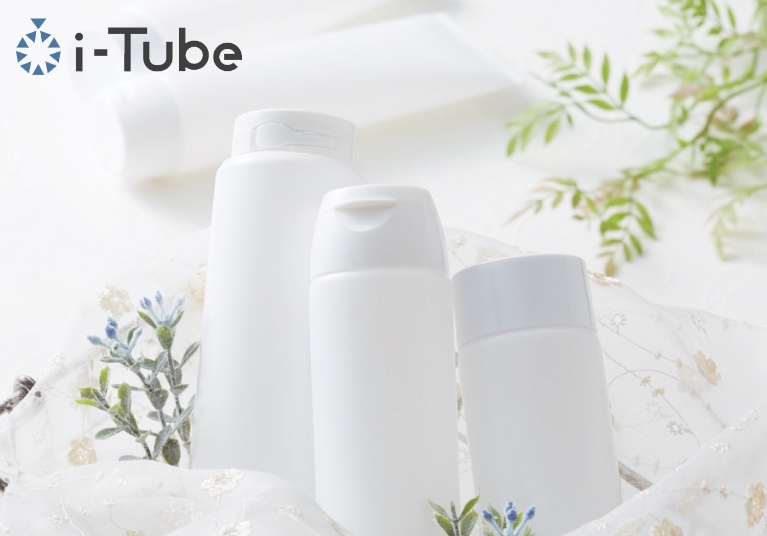

Taisei Kako Co.,Ltd. has developed the high-barrier mono-material tube ‘i-Tube’, which, despite being a single-layer polyethylene tube, possesses high gas barrier properties.
By adopting injection moulding instead of conventional extrusion moulding, i-Tube enables the formation of polygonal-shaped tubes.
Furthermore, the use of digital printing for decoration significantly enhances design flexibility, allowing us to meet a wide range of customer requirements.
Furthermore, while multi-layer extruded tubes are commonly used, their layered structure of different materials makes recycling impossible.
In contrast, i-Tube is a mono-material (PE) substrate coated with a thin film to enhance gas barrier properties. This makes it recyclable, making it an ideal environmentally conscious packaging material.
'Features of i-Tube
- Recyclable due to single material (mono-material) construction
- Provides high gas barrier properties (approximately 1/3 of single-layer) despite being single-layer
- Injection molding method enables polygon shapes
- Injection molding method is ideal for small lot production
- Equipped with water ingress prevention function for in-bath use
- Screw type comes standard with virgin seal compatibility at the tube opening.
- A low-height (TE) type with residual content measures and tamper-evident function is also available.
- Digital printing method enables versatile designs
Features of Digital Printing
- The printer uses CMYK 4 colors + 4 complementary colors, enabling high reproducibility of data and photographs.
- Printing is possible up to the tube shoulder, enabling design integration with the cap
- Printing is possible up to 1mm from the tube bottom edge, enabling nearly full-surface printing
- Smooth and fine gradation printing is possible
- Seamless printing without joints is possible
- Embossed printing (partial or full) is possible
- High-precision QR code printing is possible (QR Code is a registered trademark of DENSO WAVE INCORPORATED.)
- Additionally, since it is digital printing, no printing plates are required (recommended formats are “ai" or "PDF/X-4"; Jpeg is also acceptable)

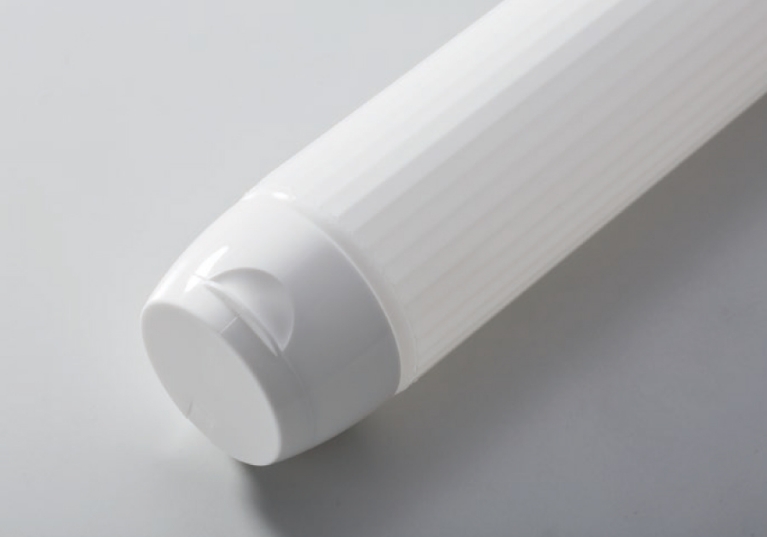

Polygon Shape

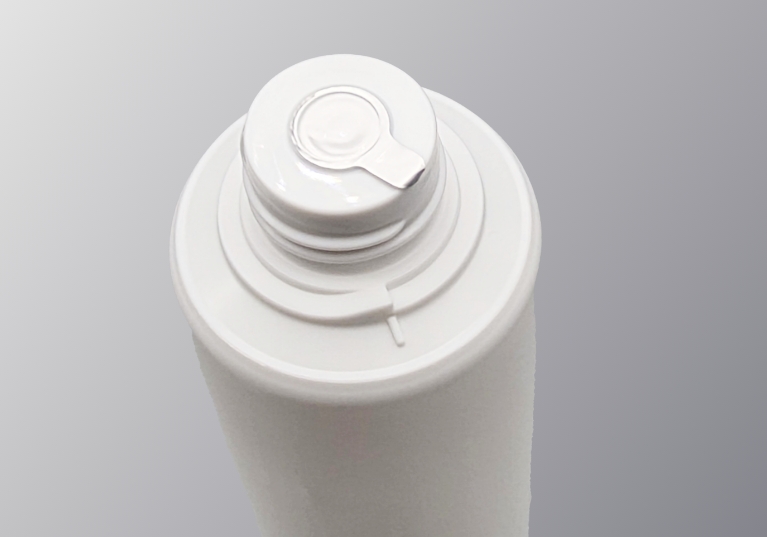

Virgin Seal

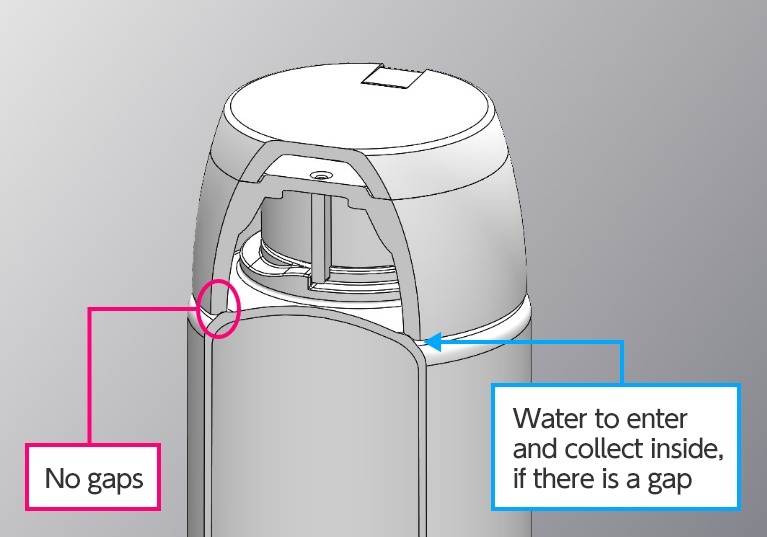

Water-resistant

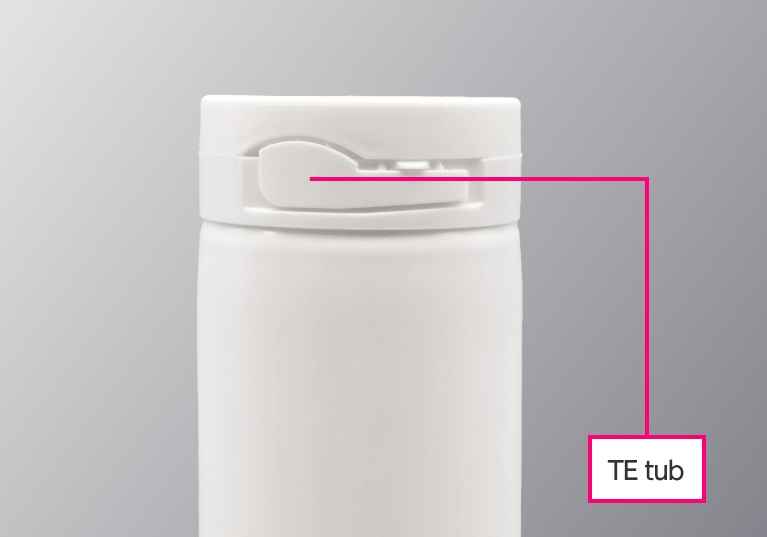

Low-Height TE Cap
Lineup
| Standard Size and Specification List | |||||||
|---|---|---|---|---|---|---|---|
| Tube Outer Diameter φ (mm) |
Approximate Capacity (g) |
Below-Shoulder Length (mm) |
Cap | ||||
| Screw | Hinge | ||||||
| Standard | Low-Height TE | ||||||
| Orifice Diameter | Orifice Diameter | ||||||
| φ3 | φ5 | φ8 | φ5 | φ5 | |||
| φ40 | 90〜130 | 120〜160 | ○ | ○ | ○ | ○ | ○ |
| φ45 | 110〜200 | 120〜175 | ○ | ○ | ○ | ○ | ○ |
| φ50 | 130〜250 | 120〜175 | ○ | ○ | ○ | ○ | ‐ |

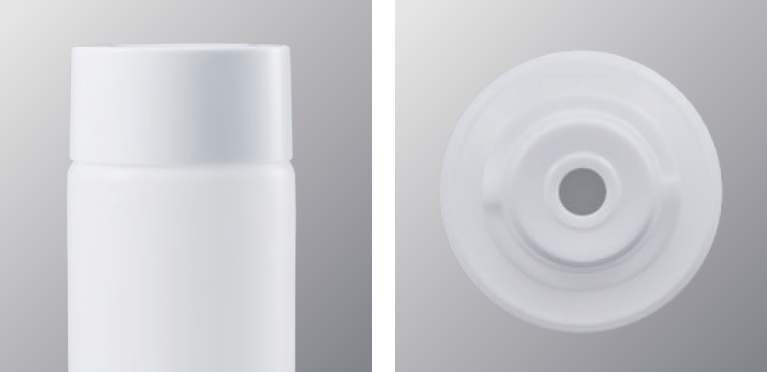

Screw type

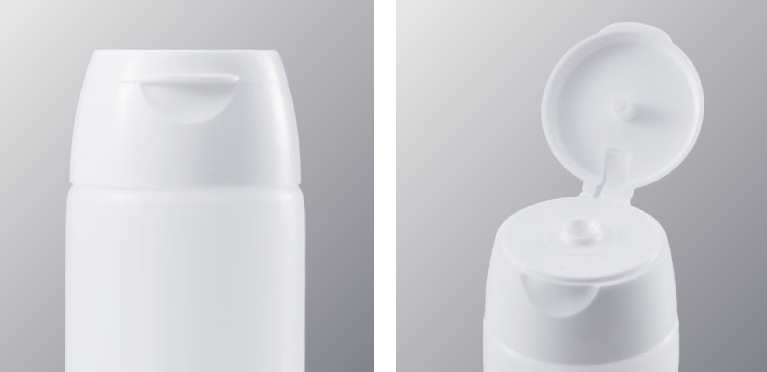

Hinge(Standard)

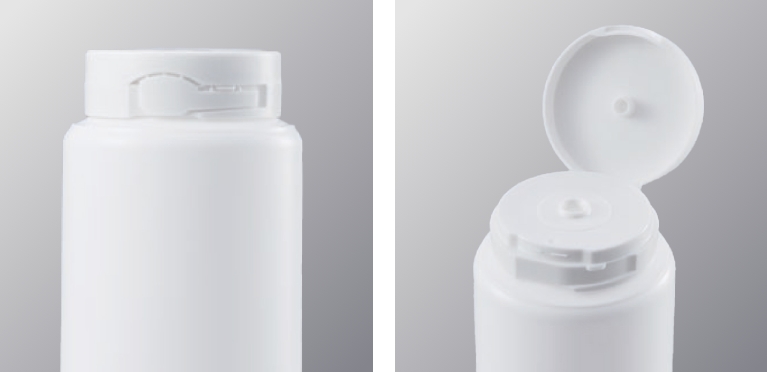

Hinge(Low-Height TE)

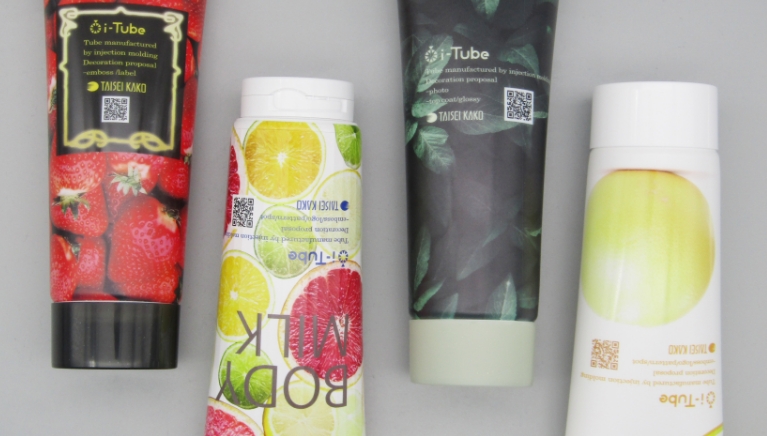

Decoration Examples

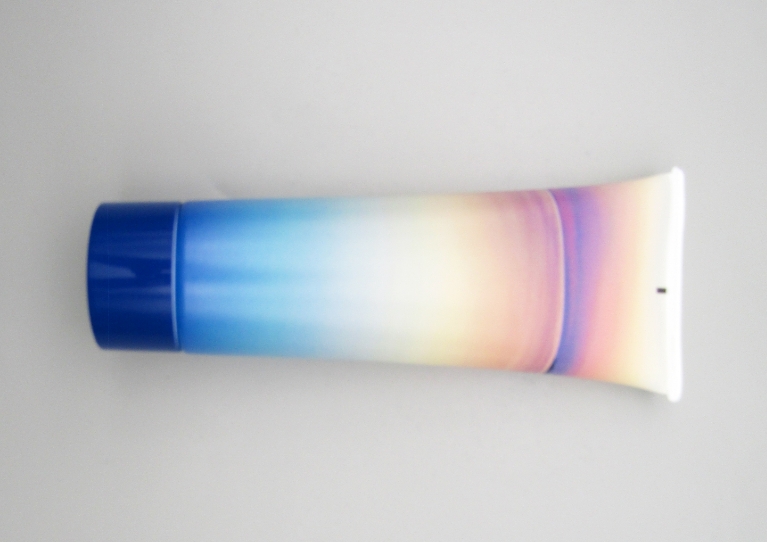

Gradations, including photographic images, can be accurately reproduced.

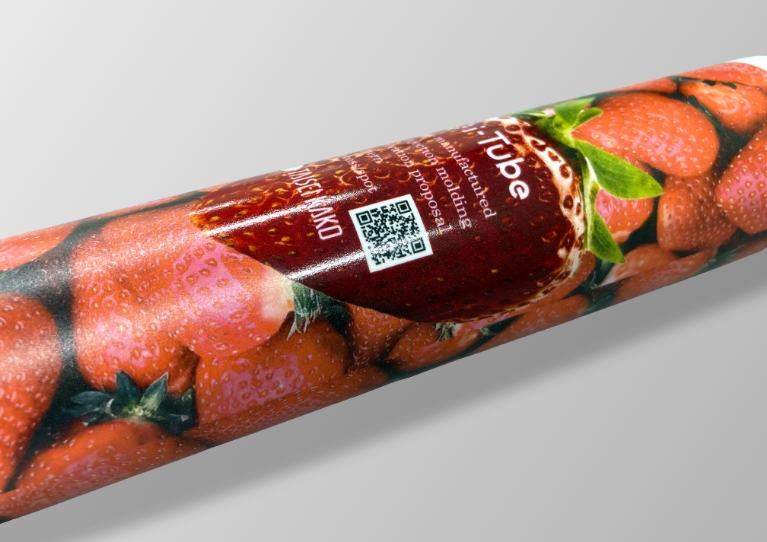

Gloss and matte finishes can be combined in a single design.

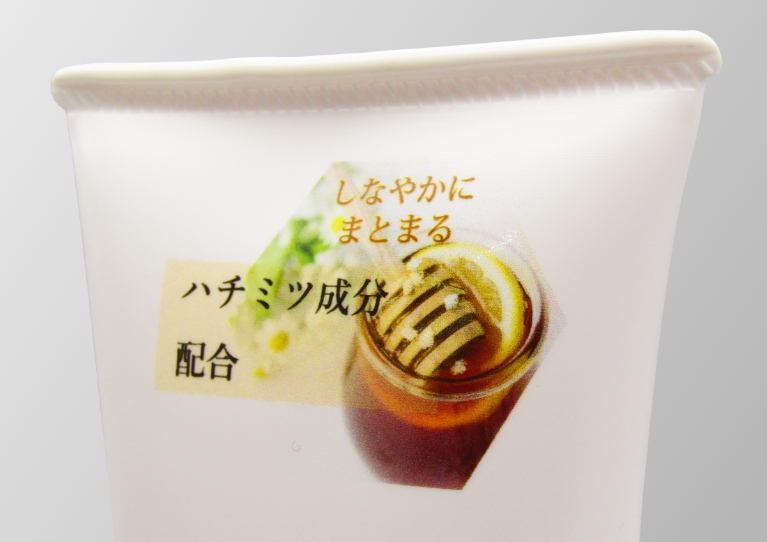

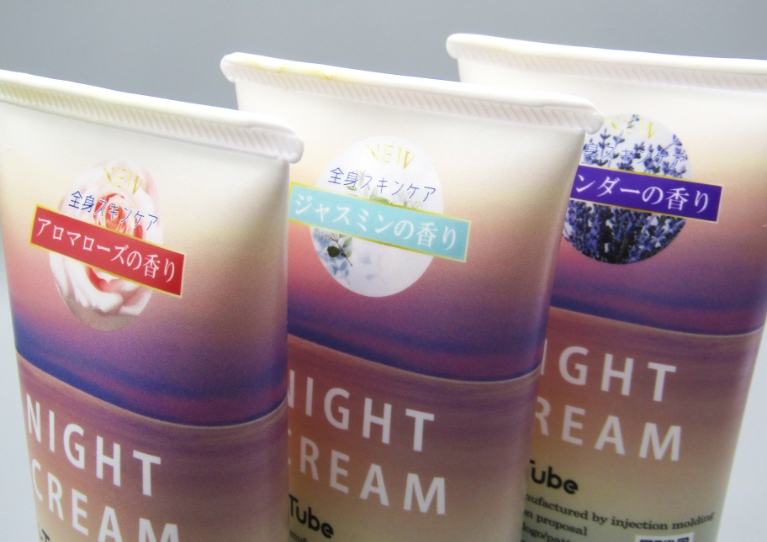

Printing enables impactful, eye-catching designs.

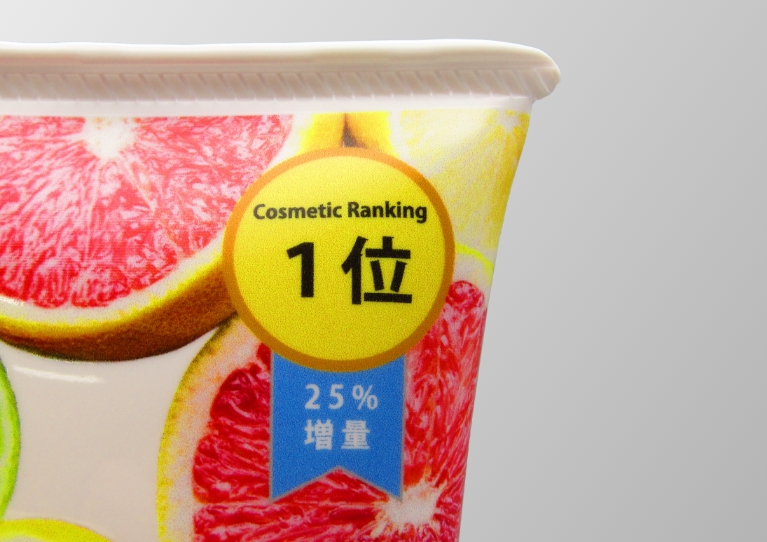

Suitable for promotional campaigns.
