VF-Syringe
Introduction of Neutral Borosilicate Glass-Excellence in The Protection of Injection Drug Solution
Still in high demand of glass prefilled syringe.
In order to meet a wide variety of customers’needs, we offer an array of specifications / packagigs.
If you hope a special specification, please consult with us.
VF-SYRINGE<Glass Prefilled Syringe>
【Product Type】
| Product Type | Glass Syringe Forming | Washing | Silliconization | Tip Cap Assembling | Sterilization |
|---|---|---|---|---|---|
| A | ○ | ||||
| B | ○ | ○ | |||
| C | ○ | ○ | ○ | ||
| D | ○ | ○ | ○ | ○ | |
| E | ○ | ○ | ○ | ○ | ○ |
| Glass Syringe Forming | Glass tube is molded to meet with the ISO Standard dimensions. |
|---|---|
| Washing | Both surfaces of Inner and outer glass barrel are washed with clean water, and finaly rinsing the inner surface with WFI. |
| Silliconization | Siliconization is finlly performed with emulsified silicone for medical use. |
| Tip Cap | Assembling the tip cap to the barrel. We perform the 100% CAP inspection. |
| Sterilization | If you need to perform the EtO sterilization, we can meet your request of your sterilization. |
【Standard Type】
Standard Type
| Product Name | Volume (mL) | Outer Diameter φ (mm) |
Inner Diameter φ (mm) |
Total Length (mm) | Conformity with ISO |
|---|---|---|---|---|---|
| VF-1 | 1.0 | 8.15 | 6.35 | 64.0 | ISO 11040-4 |
| VF-2.25 | 2.25 | 10.85 | 8.65 | 65.5 | |
| VF-5 | 5.0 | 14.45 | 11.85 | 79.4 | |
| VF-A5 | 5.0 | 14.85 | 12.45 | 79.0 | Specialized Dimensions |
※LLA is attachable on the Standard Types.
Double-ended Needle Type
| Product Name | Volume (mL) | Outer Diameter φ (mm) |
Inner Diameter φ (mm) |
Total Length (mm) | Conformity with ISO |
|---|---|---|---|---|---|
| VF-ME2 | 2.0 | 10.85 | 8.65 | 76.8 | Specialized Dimensions |
Needle Type
| Product Name | Volume (mL) | Outer Diameter φ (mm) |
Inner Diameter φ (mm) |
Total Length (mm) | Conformity with ISO |
|---|---|---|---|---|---|
| SIN-Syringe 1mL long | 1.0 | 8.15 | 6.35 | 76.7 | ISO 11040-4 |
【Packaging】

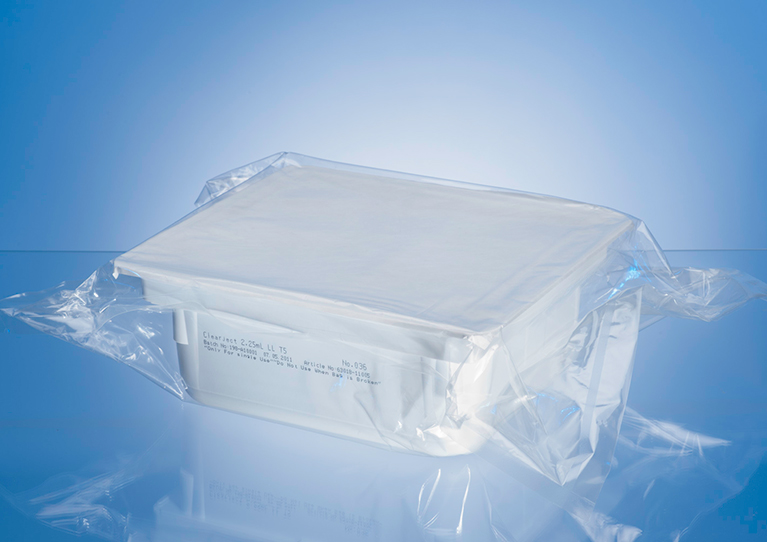

TasPack®（RTU Type）
After opening the plastic bag, the packaging is designed to be in the state of Ready-To-Use.
Rondo-tray
Load syringes on rondo-tray, stack loaded trays, and package them with clean plastic bag.
